UL 3122 WIRE

Product Description

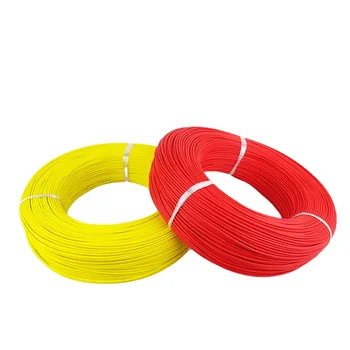

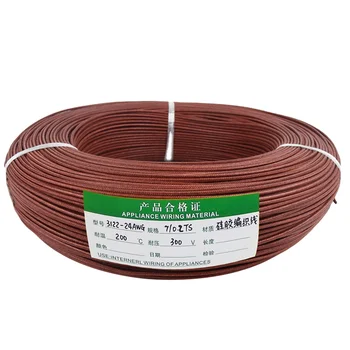

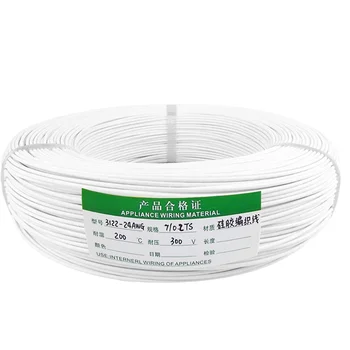

Product name	3122 Silicone insulated wire cable
Cable length per roll	305/roll
Conductor material	Tinned copper, bare copper
Insulation material	Silicone
Conductor specification	7 / 0.12TS for 28awg
Color	red-black-yellow-green-blue-white-orange-gray-brown-pink-yellow and green
Temperature range	-100℃~+200℃
Rated voltage	300V
OEM	Acceptable
Features	Must pass VW-1 and Ft1 vertical flame retardant tests, with uniform insulation thickness
Uses	Lead out connecting wires for household appliances, lighting fixtures, electronic equipment, temperature sensors, etc.
Advantage	Inventory spot, one roll up purchase
Sample	Free sample, customer pays freight

Product Specification

Conductor			Insulator		Packing
AWG	Conductor construction NO.Xmm	Diameter mm	Insulator Thick mm	Over Diameter	M/roll
26	7/0.16	0.48	0.38	1.7	610
24	11/0.161	0.61	0.38	1.8	610
22	17/0.161	0.76	0.38	2.0	200
20	21/0.18	0.94	0.38	2.2	100
18	34/0.18	1.18	0.38	2.4	100
16	54/0.18	1.50	0.38	2.75	100
