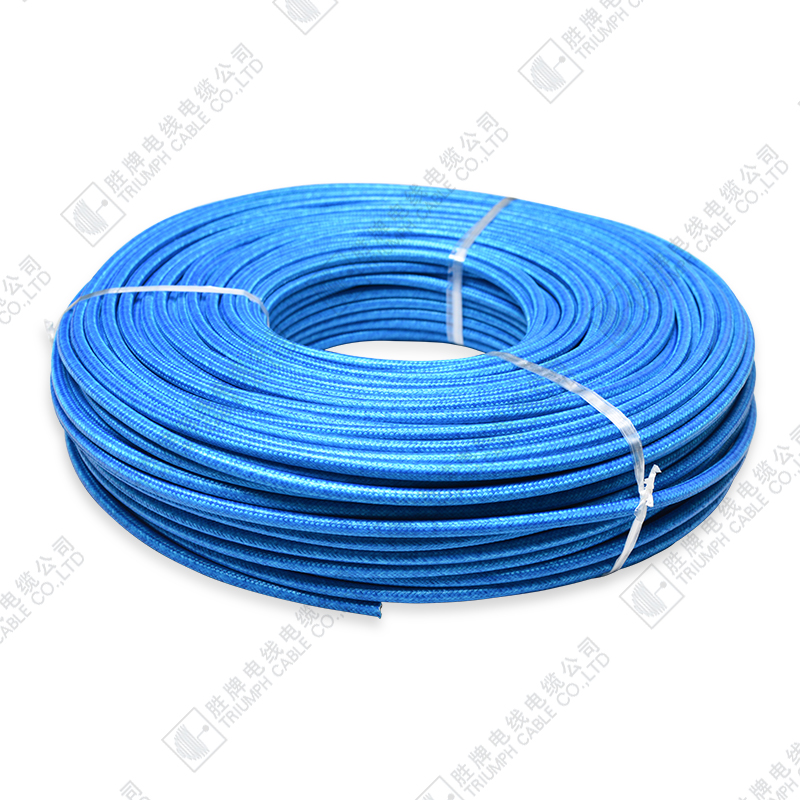

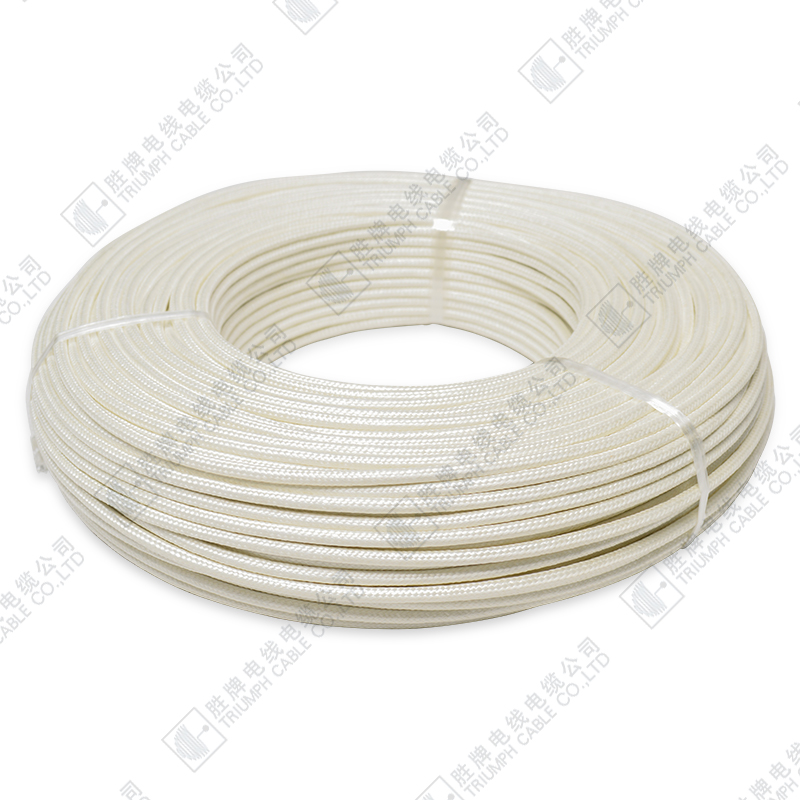

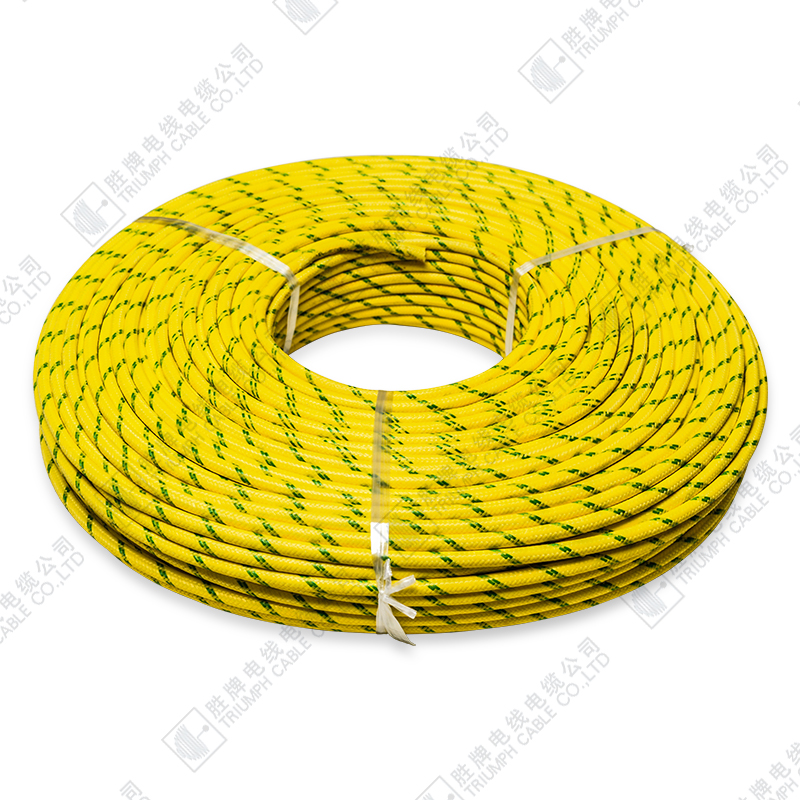

3320 0.5MM，Insulation material：Silicone，Conductor material：Tinned copper , bare copper，one roll up purchase，Free sample。
Product Description
Product name | 3320 silicone insulated wire cable |
Cable length per roll | 100/roll |
Conductor material | Tinned copper , bare copper |
Insulation material | Silicone |
AWG | 0.20-14.0mm |
Color | red-black-yellow-green-blue-white-orange-gray-brown-pink-yellow and green |
Temperature range | -60℃~+200℃ |
Rated voltage | 600V |
OEM | Acceptable |
Features | Must pass VW-1 and Ft1 vertical flame retardant tests, with uniform insulation thickness |
Uses | Lead out connecting wires for household appliances, lighting fixtures, electronic equipment, temperature sensors, etc. |
Advantage | Inventory spot, one roll up purchase |
Sample | Free sample, customer pays freight |
Product Specification
Conductor | Insulator | Packing | ||||
AWG | Conductor construction NO.Xmm | Diameter mm | Insulator Thick mm | Pleach Thick mm | Over Diameter | Mt/coils |
| 0.20 | 1 x 0.50 | 0.50 | 0.40 | 0.20 | 1.70 | 500 |
| 0.30 | 1 x 0.60 | 0.60 | 0.40 | 0.20 | 1.80 | 500 |
| 0.50 | 1 x 0.80 | 0.80 | 0.40 | 0.20 | 2.00 | 400 |
0.75 | 1 x 1.00 | 1.00 | 0.40 | 0.20 | 2.20 | 400 |
| 1.25 | 1 x 1.20 | 1.20 | 0.45 | 0.20 | 2.50 | 200 |
0.25 | 7 x 0.20 | 0.61 | 0.40 | 0.20 | 1.81 | 500 |
0.30 | 12 x 0.18 | 0.72 | 0.40 | 0.20 | 1.92 | 500 |
0.50 | 20 x 0.18 | 0.93 | 0.40 | 0.20 | 2.13 | 500 |
| 0.75 | 30 x 0.18 | 1.14 | 0.40 | 0.20 | 2.64 | 500 |
| 1.25 | 50 x 0.18 | 1.47 | 0.40 | 0.20 | 2.67 | 400 |
| 2.00 | 37 x 0.26 | 1.83 | 0.50 | 0.20 | 3.23 | 200 |
| 2.50 | 47 x 0.26 | 2.06 | 0.50 | 0.20 | 3.46 | 200 |
| 3.50 | 45 x 0.32 | 2.48 | 0.60 | 0.20 | 4.08 | 100 |
| 4.00 | 50 x 0.32 | 2.61 | 0.60 | 0.20 | 4.21 | 100 |
| 5.50 | 35 x 0.45 | 3.08 | 0.70 | 0.20 | 4.88 | 100 |
| 8.00 | 50 x 0.45 | 3.67 | 0.70 | 0.20 | 5.48 | 100 |
| 14.00 | 88 x 0.45 | 4.88 | 1.10 | 0.20 | 7.28 | 100 |
